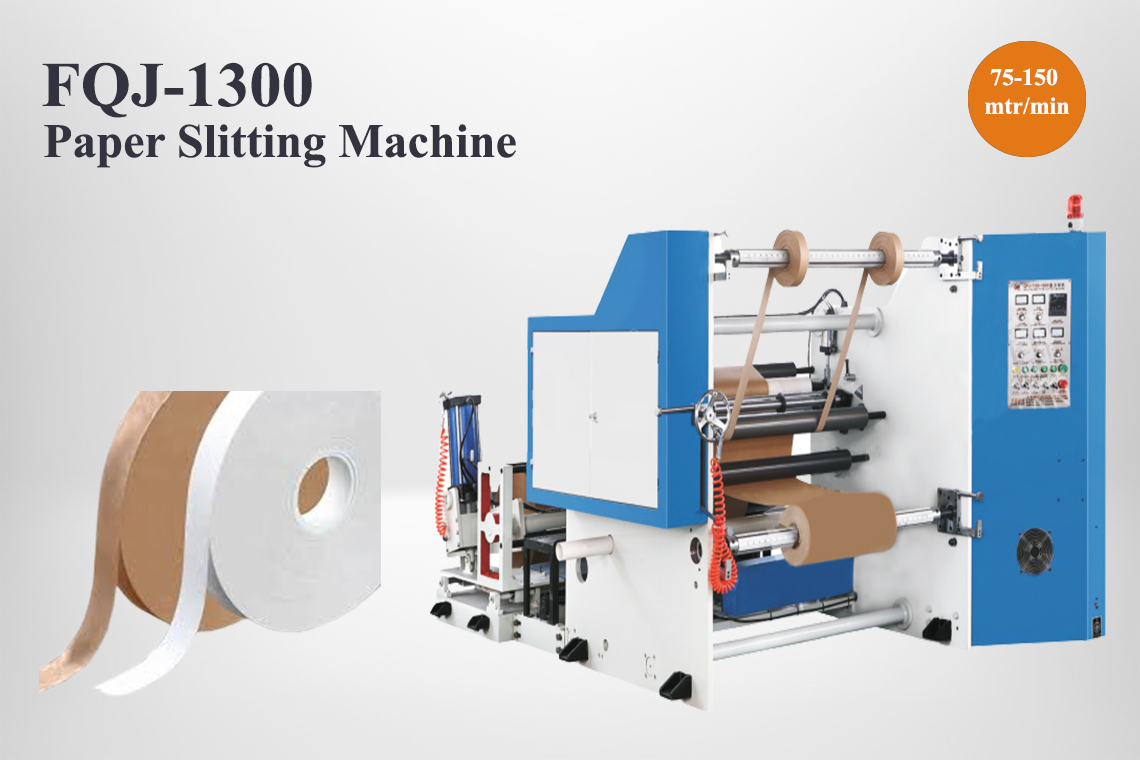

Paper Slitting Machine

Description

PSM-1300 is suitable for slitting and trimming the super-sized coiled material like plastic films, i.e. Paper, cloth and all kinds of paper-plastic compound materials like laminated paper, coating paper, synthetic leathers and so on for printing and packing. This Machine adopts frequency speed control, micro computer automatic controller, imported hydraulic pressure rectifying device, featuring in automatic counting, stop upon alarming, digital dis player for tension etc. Adjustable slitting blades. The rewinding parts adopts double servo motor.

Max Width of Unwinding 1400 MM
Max Width of Slitting 1300 MM
Max Width of Rewinding 800 MM
Speed 120-150 M/Min
Power 8 Kw 380 V/50 Hz
Air-Pressure Required 0.5 m 3/Min
Weight 3000 Kgs
Dimension 3300 x 2600 x 1550 MM
Suitable Material 50-400 GSM
Total Power 11 KW
