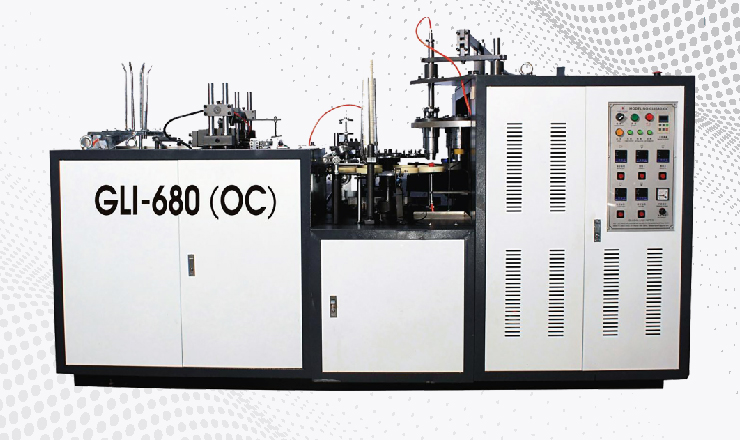

GLI 680 OC paper cup machine is improved based on the Open Cam Driving System. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an ideal equipment for producing drinking cups, market cups, coffee cups, advertising cups, etc. It is widely used for hot drink and cold beverages.
If you need double PE Coated Paper Cups or paper gram higher 250g/m2, we recommend you to use Ultrasonic paper cup machine, it can produce single pe coated paper cups and double PE Coated Paper Cups.
| Type | High-Speed Paper Cup Machine GLI 680 OC |
| Cup Size | 50ml to 330 ml，(different size mould exchanged) |
| Material | Suitable paper- 30-350g/m2（single or double PE-coated paper) |
| Production Speed/Capacity | 65-75pcs/min |
| Power Source | 380V(Three Phase) 50HZ （Please inform us of your power in advanced.） |
| Total Power | 3.5KW/5HP |
| Weight | 2200KG |
| Machine size | 2.5mtr x 1.4mtr x 1.7mtr |
| Working Air Source | Air pressure 0.4Mpa; Air out-put:0.6m3/min (only for 2 pe cups.)
|
 |
A：Top Diameter: Min 45mm—Max 90mm B：Bottom Diameter Min 35mm—Max 75mm C： Total Height Min 30mm—Max 115mm D：Bottom Knurling Depth Min 4mm—Max 12mm E：Rim Diameter Usually Φ2.5—Φ3 |
